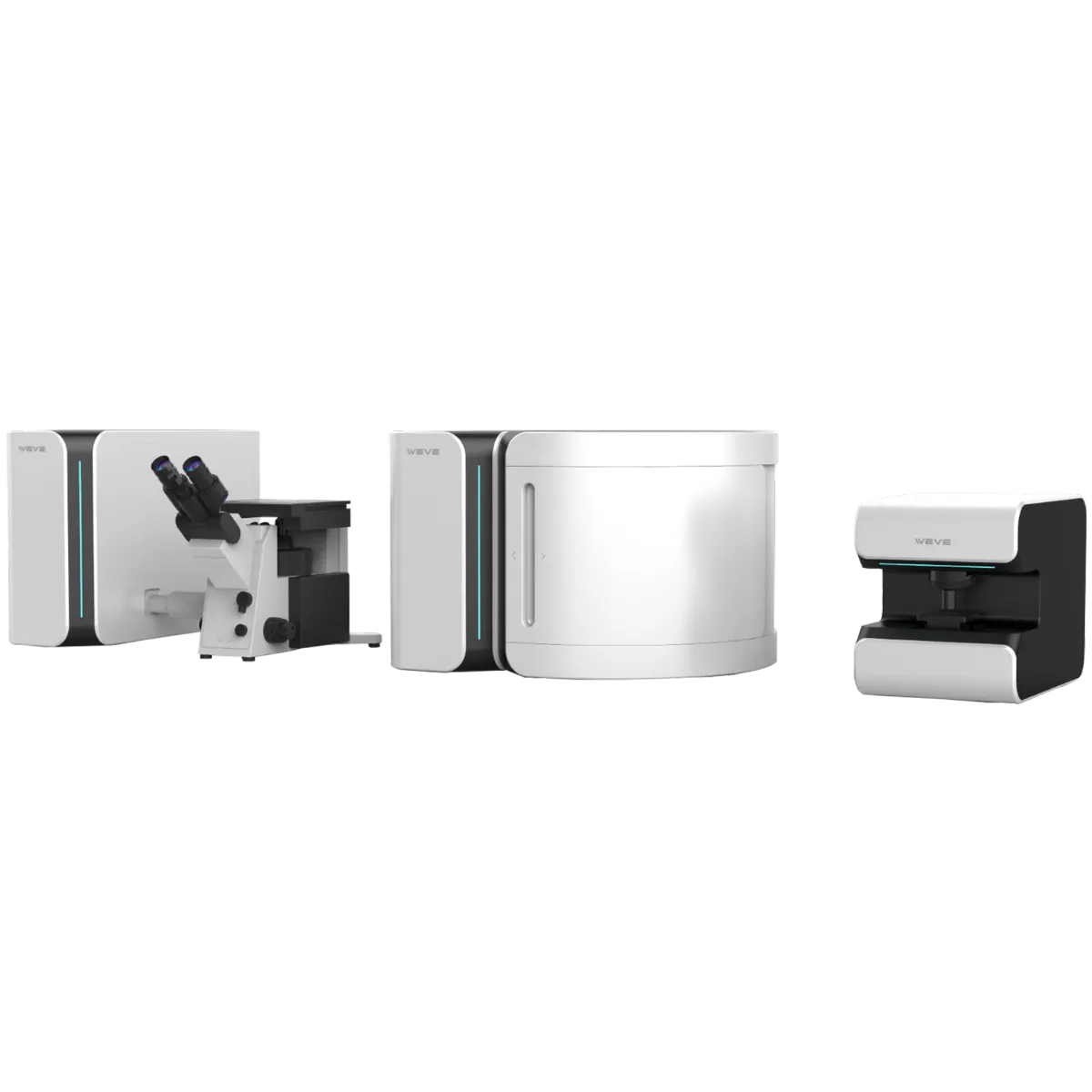

Raman Spectrometer MantaRay
Laboratory Technology
Information
A user-focused Raman spectroscopy system that ensures ease of use, speed, and precision, through a structurally differentiated design from conventional analytical instruments.
Designed as a modular system, it seamlessly integrates with a variety of commercial optical microscopes including standard, fusion, and inverted types, and is available in three configurations to meet a broad range of application requirements.
MantaRay minimizes accuracy distortion by aberration-compensated spectral design.
The built-in calibration standard lamp and automatic calibration algorithm (patented) ensure the initial measurement settings are preserved.
High reproducibility of measurement results are secured by dual-head rotary encoders with less than 0.003 degrees of error, easily replaceable gratings, built-in silicon sample and guide beam.
The path of laser is optimized for the shortest distance which directly influences sustainability and reliability. For simpler management, maintenance, and increasing mechanical stability minimized design was applied.
Technical Specifications:
* Raman Shift Range: From 50cm⁻¹ @ Low wave cut-off filter to 4500cm⁻¹ or higher) 80cm⁻¹ @ > 50% edge steepness
* Spectral Resolution: Average [0.07 nm / CCD pixel @ 1200gr/mm, 650 nm] [~ 1cm⁻¹ @ 2400gr/mm] [0.2cm⁻¹/ pixel @ HRS(high resolving) mode]
* Spectral Accuracy: <0.04nm @2400g
MantaRay can be used in various research fields such as environment, energy, materials engineering, biomedicine, sensor development, photocatalysis, solar cell development, plasmonic microparticle development, LED inspection, microplastics, carbon dioxide capture & utilization, etc.
