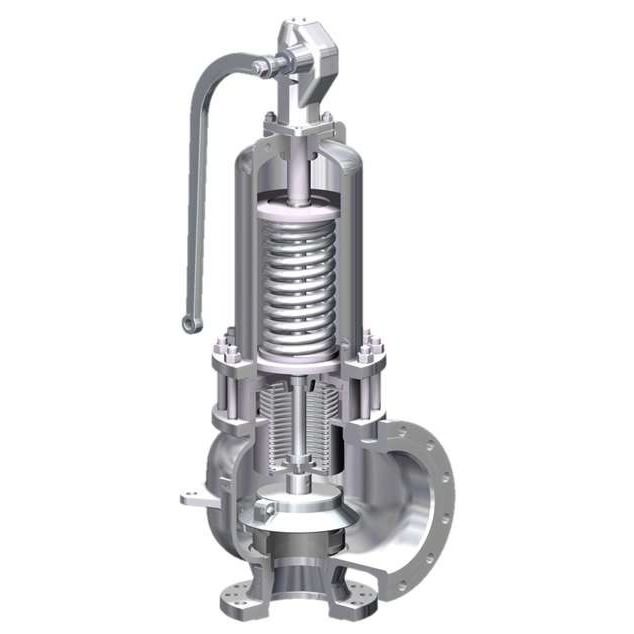

full-lift safety valve SAFE® series 900
Process Technology
Information
The full-lift safety valve SAFE® series 900 is a spring-loaded safety valve with high capacity and has a robust and rapid opening characteristic.
The SAFE® series 900 is type-approwed in accordance with VdTÜV, EN ISO 4126-1, AD2000-A2, TRD421 and ASME Sec. XIII.
The full-lift safety valves SAFE® series 900 are classically used in hot water and steam systems as well as industrial applications with high capacity.
- Balanced bellows are compensated build up and super imposed back pressure and are additionally redundant tight with primer and secondary sealing, including a redundant balanced piston
- Low pressure balanced bellows for blow-down systems in chemical industries.
- Compliance with stricter emission limits in systems with critical media in accordance with EN ISO 15848-1, TA-Luft, VDI2440
- Protection of the spring room and guiding against dirt particles and aggressive media. Avoid spring and guide corrosion.
- The low-pressure bellows increases the range of our portfolio and gives us more opportunities to become active in critical areas. For the market launch, we will be able to supply SAFE and SAFE-P with VdTÜV- approved balanced bellows in the pressure range of 0.3 - 3 barg.
Sales from Q1, 2026
Additionally approved:
- For compact applications are the horizontal installation
for Series 900 and 920 VdTÜV type approved.
