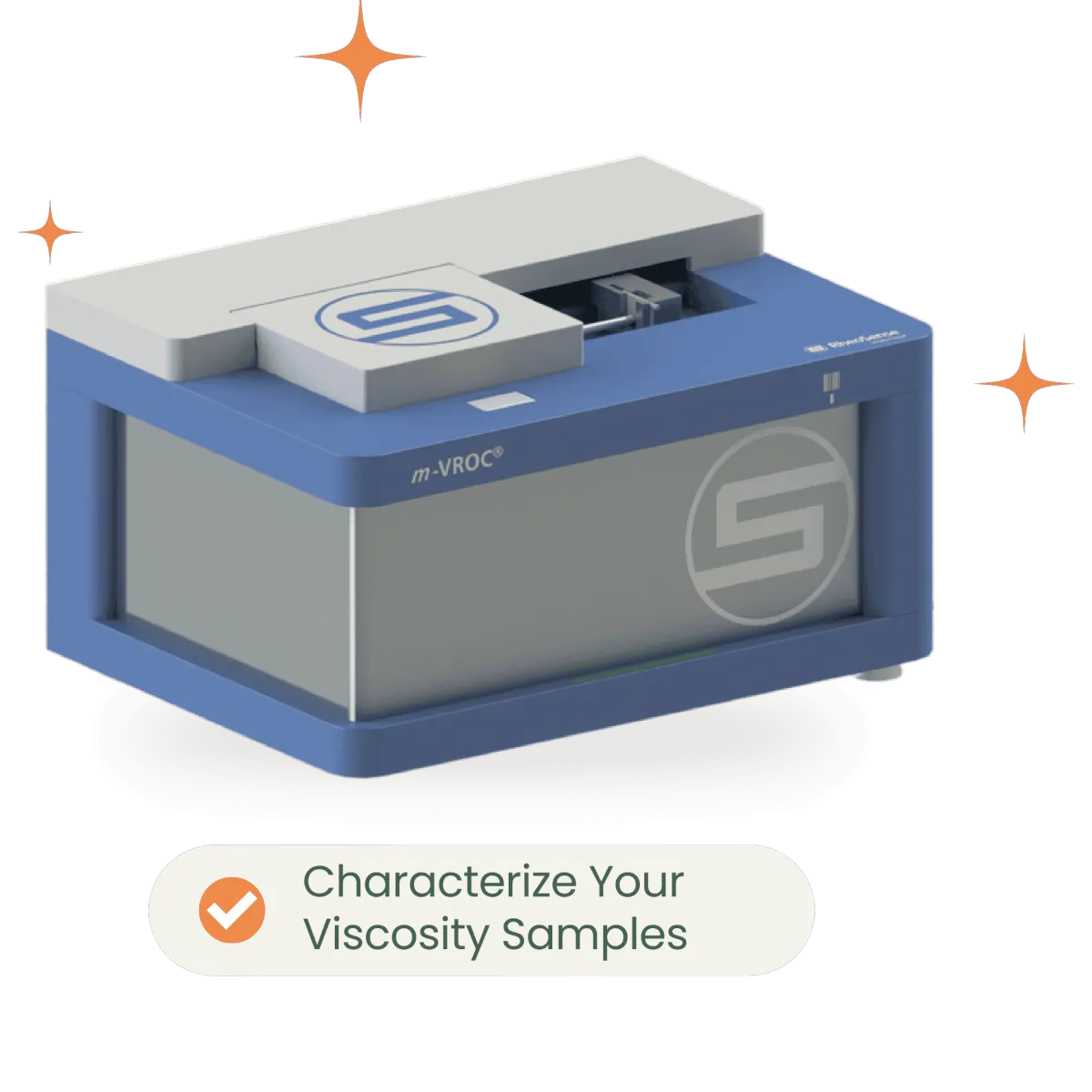

Microfluidic Rheometer m-VROC II
Laboratory Technology
Information
The m-VROC II is the next generation leading small sample microfluidic viscometer, featuring the widest dynamic range (high shear rate viscosity measurements up to 2,020,000 s-1) with as little as 10µL of sample. Each sample can be utilized as many times as you need with revolutionary retesting and retrieval features.
Features:
· Minimum Sample Volume: form 10 µL
· Integrated Peltier temperature control unit (from 4 to 70 °C, +/- 0.07° C). The heating/cooling is now much faster and more precise. No water interference.
· Automatic temperature and shear rate sweeps
· Fast measurement time (less than 1 minute)
· The system is equipped with retest and retrieve function. It means that you can retest the same sample with different temperate and different shear rates without renewing the test syringe.
· The system is completely closed which means you have no sample evaporation and you will measure more effectively
· Wide dynamic viscosity range 0.4 till 200,000 cP
· Accuracy up to 2% of Reading
· Repeatable Measurement up to 0.5% of Reading
· Controllable shear rate: 0.86 to 2,020,000 s-1
· The chips can be swiped within few seconds
· Automatic chip cleaning station is included. The cleaning is very fast and very easy.
· No dilution – no air-liquid interface
